What is DMAIC?

What Does DMAIC Stand For?

DMAIC (pronounced duh-MAY-ick) is the structured, five-phase methodology at the heart of Lean Six Sigma. It stands for Define, Measure, Analyse, Improve, and Control. If you want a straight answer: it is a highly disciplined framework used to systematically improve, optimise, and stabilise existing business processes that are failing to meet customer expectations.

Unlike brainstorming sessions where teams jump straight to solutions based on assumptions, DMAIC forces you to slow down. It demands that you prove the root cause of a problem with data before you are allowed to implement a fix. This data-driven rigour is exactly why DMAIC projects boast a significantly higher long-term success rate compared to traditional change management initiatives.

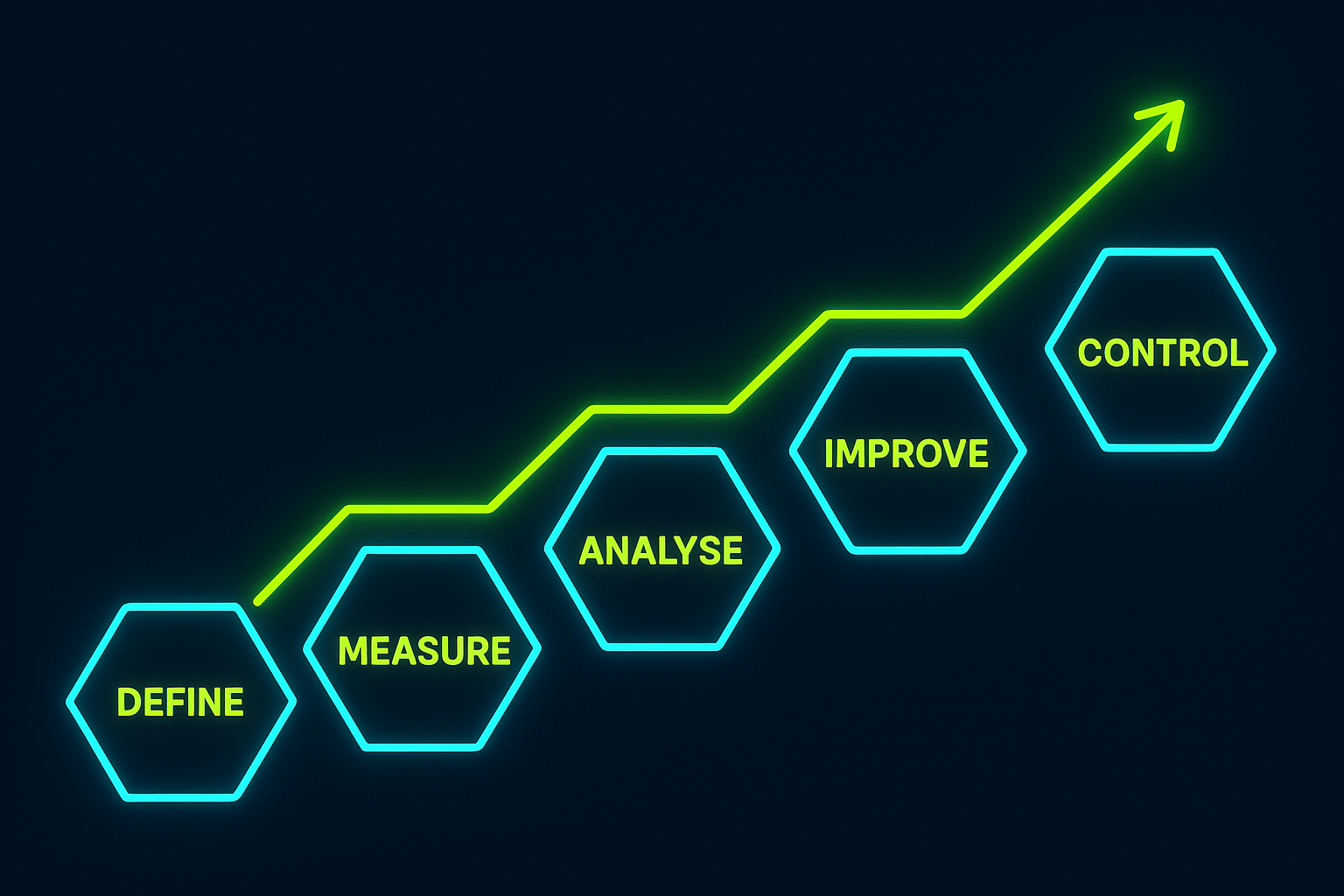

The 5 Phases of DMAIC Breakdown

Each phase of the DMAIC process acts as a strict tollgate. You cannot proceed to the next phase until the deliverables of the current phase are fully met. Let's break down exactly what happens in each stage.

1. Define Phase

The Goal: Understand the problem, outline the scope of the project, and determine what the customer actually cares about.

You cannot solve a problem if you cannot clearly articulate it. In the Define phase, the project team creates a Project Charter to outline the business case, the problem statement, and the goal. They also identify the Critical-to-Quality (CTQ) metrics from the customer's perspective. It sets the boundaries so the project doesn't suffer from scope creep.

• Key action: Drafting a clear, measurable problem statement.
• Common tools used: SIPOC Diagram, Project Charter, Voice of the Customer (VOC) analysis.

2. Measure Phase

The Goal: Map the current process and collect baseline data to understand exactly how bad the problem currently is.

Before you can improve anything, you must know where you are starting from. The Measure phase is entirely about data collection. The team maps the "As-Is" process step-by-step to identify where data can be gathered. They then validate their measurement system to ensure the data they are collecting is trustworthy, and calculate the current baseline performance (often in terms of Sigma Level or DPMO).

• Key action: Establishing a reliable baseline performance metric.
• Common tools used: Value Stream Mapping, Data Collection Plan, Measurement System Analysis (MSA).

3. Analyse Phase

The Goal: Identify, verify, and select the true root causes of the problem using data.

This is the detective work of the DMAIC cycle. The team takes the data collected in the Measure phase and analyses it to find the source of the variation or waste. They will brainstorm potential causes and then use statistical tools to prove or disprove them. The goal is to move from a list of 50 potential causes down to the 2 or 3 critical "vital few" root causes.

• Key action: Proving the root cause with statistical evidence.
• Common tools used: Root Cause Analysis (5 Whys), Fishbone Diagram (Ishikawa), Pareto Charts, Hypothesis Testing.

4. Improve Phase

The Goal: Develop, pilot, and implement solutions that address the verified root causes.

Only now, in step four, are you allowed to fix the problem. The team brainstorms potential solutions to the root causes identified in the Analyse phase. They select the best solutions based on effort, cost, and impact. Crucially, they will test these solutions in a small-scale pilot to ensure they actually work in the real world before rolling them out across the entire business.

• Key action: Piloting and executing the optimal solution.
• Common tools used: Brainstorming techniques, Design of Experiments (DOE), FMEA (Failure Mode and Effects Analysis), Pilot Plans.

5. Control Phase

The Goal: Sustain the gains by standardising the new process and implementing monitoring systems.

The most common failure in process improvement is that teams revert to their old habits once the project closes. The Control phase prevents this. The team updates standard operating procedures (SOPs), trains the staff on the new process, and implements control charts or dashboards to monitor performance continuously. If the process starts to slip, the control plan dictates exactly how to respond.

• Key action: Standardising the fix and monitoring ongoing performance.
• Common tools used: Control Charts (SPC), Standard Operating Procedures (SOPs), Control Plans, Visual Management.

Step-by-Step Workflow Diagram

To visualise how a project flows through the DMAIC cycle, here is a simplified text-based workflow:

Example Project: Reducing Invoice Errors

Let's look at a practical office example. A finance department is experiencing a high rate of invoice rejections from clients, causing cash flow issues.

• Define: The team defines the problem: "Over the last 6 months, 18% of invoices sent to clients were rejected due to errors, delaying payment by an average of 14 days." They map the high-level process using a SIPOC.
• Measure: They track exactly *where* the errors are happening. They discover it takes 4 days just to generate an invoice. They collect data on 500 invoices to establish a baseline.
• Analyse: Using a Pareto chart, they find that 80% of the errors are specifically "Incorrect PO Number". Using a Fishbone diagram and the 5 Whys, they verify the root cause: the CRM system does not force the sales team to enter a PO number before closing a deal, so finance has to guess or chase it up manually.
• Improve: The team implements a solution: making the PO number a mandatory, validated field in the CRM software. They pilot this with one sales team for two weeks. Invoice errors for that team drop to zero. They roll it out company-wide.
• Control: They update the onboarding manual for new sales reps to highlight the PO process. They set up a weekly dashboard to monitor invoice rejection rates. The project is closed successfully.

Summary

The DMAIC methodology is the engine of Lean Six Sigma. By strictly adhering to the Define, Measure, Analyse, Improve, and Control phases, organisations are forced to move away from assumption-based guessing. Instead, they rely on data to find true root causes and implement sustainable, long-term solutions that deliver measurable value to the customer and the bottom line.
